Quick start

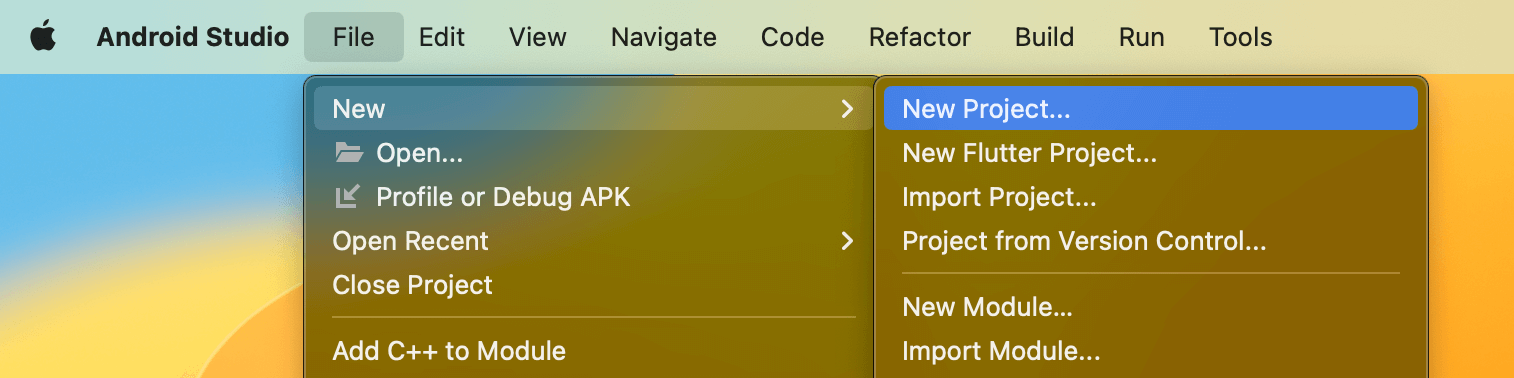

1. Open Android Studio, select File > New > Project.

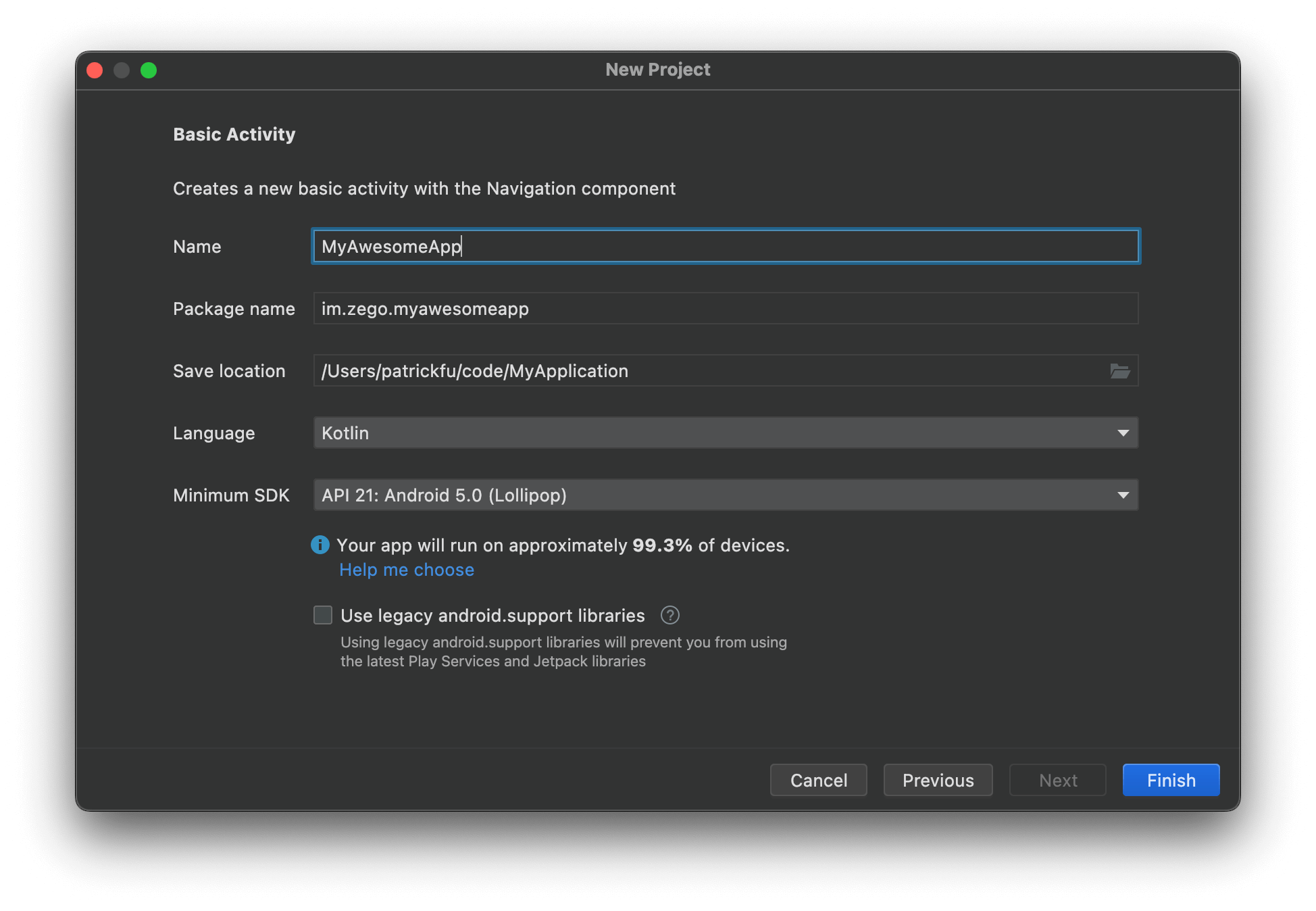

2. Configure your new project with Application name and Project location.



3. All other items in the panel can be left as their defaults, click Next and then click Finish.

1. If your Android Gradle Plugin is v7.1.0 or later: go to the root directory of your project, open the settings.gradle file, and add the following line to the dependencyResolutionManagement:

   If you can't find the above fields in settings.gradle, it's probably because your Android Gradle Plugin version is lower than v7.1.0.

   For more details, see Android Gradle Plugin Release Note v7.1.0.

   ...
   dependencyResolutionManagement {
       repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
       repositories {
           maven { url 'https://storage.zego.im/maven' }
           google()
           mavenCentral()
       }
   }

   If your Android Gradle Plugin is earlier than 7.1.0: go to the root directory of your project, open the build.gradle file, and add the following line to the allprojects:

   ...
   allprojects {
       repositories {
           maven { url 'https://storage.zego.im/maven' }
           google()
           mavenCentral()
       }
   }

2. Go to the app directory, open the build.gradle file, and add the following line to the dependencies. (x.y.z is the SDK version number, to obtain the latest version number, see ZEGO Express-Video Android SDK Release History)

   ...
   dependencies {
       ...
       implementation 'im.zego:express-video:x.y.z'
   }

1. Download the latest version of SDK. For details, see SDK downloads .

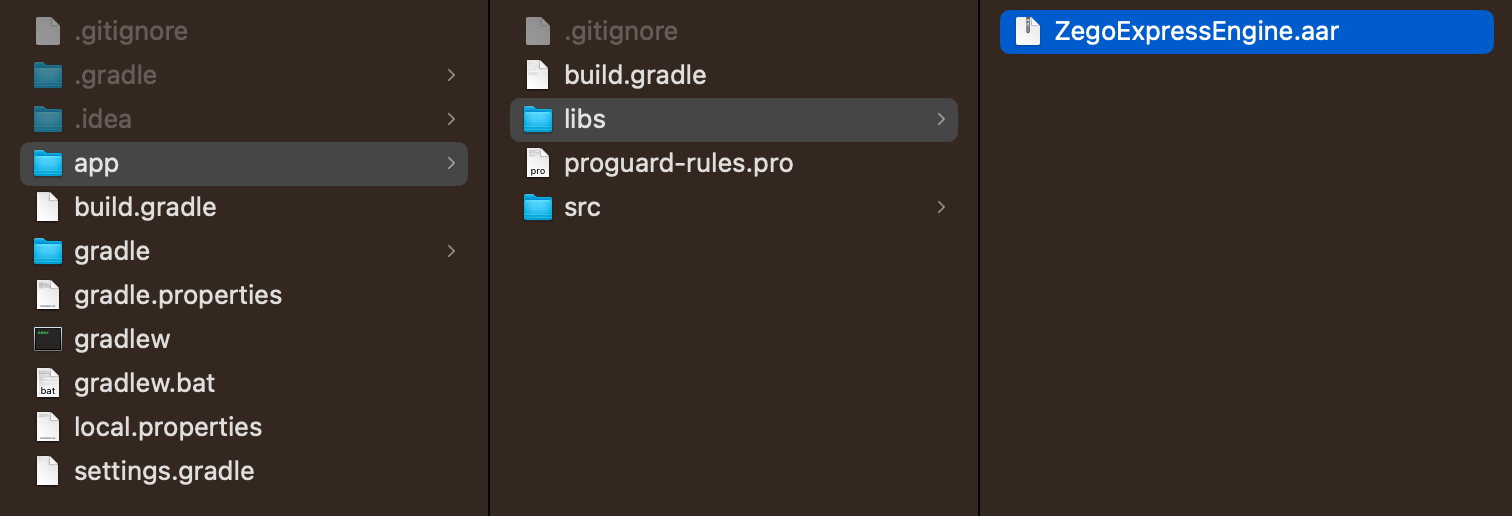

2. Copy the "release/Library/ZegoExpressEngine.aar" in the decompressed AAR file to your project directory, such as "app/libs".

   The files under the "release/Library/" directory in the SDK package contain:

   • ".aar" file: for your use when using this integration method, other files can be ignored.

   • Other files: for your use when using Option 3: Manual integration by copying SDK JAR + SO files.



3. Enter the project root directory, open the "settings.gradle" file, and add the following code in "dependencyResolutionManagement".

   ...
   dependencyResolutionManagement {
       repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
       repositories {
           google()
           mavenCentral()
           flatDir {
               dir 'app/libs'
           }
       }
   }

   If you cannot find the above fields in "settings.gradle", it may be because your Android Gradle Plugin version is lower than v7.1.0, please refer to [Android Gradle Plugin Release Note v7.1.0\|_blank](https: //developer.android.google.cn/studio/past-releases/past-agp-releases/agp-7-1-0-release-notes#settings-gradle). At this point, please proceed as follows:

   Enter the project root directory, open the "build.gradle" file, and add the following code in "allprojects".

   ```groovy
   ...
   allprojects {
       repositories {
           google()
           mavenCentral()
           flatDir {
               dir 'app/libs'
           }
       }
   }

4. Enter the "app" directory, open the "build.gradle" file, and add implementation(name: 'ZegoExpressEngine', ext: 'aar') in "dependencies".

   ...
   dependencies {
       ...
       implementation(name: 'ZegoExpressEngine', ext: 'aar')
   }

   And add the "ndk" node in the "defaultConfig" node to specify the supported architecture.



   ndk {
       abiFilters 'armeabi-v7a', 'arm64-v8a', 'x86', 'x86_64'
   }

   Decide which architecture to support based on the actual situation. Usually you only need to keep "armeabi-v7a" and "arm64-v8a" when publishing the App, which can reduce the APK package size.

1. Download the latest version of SDK. For details, see SDK downloads .

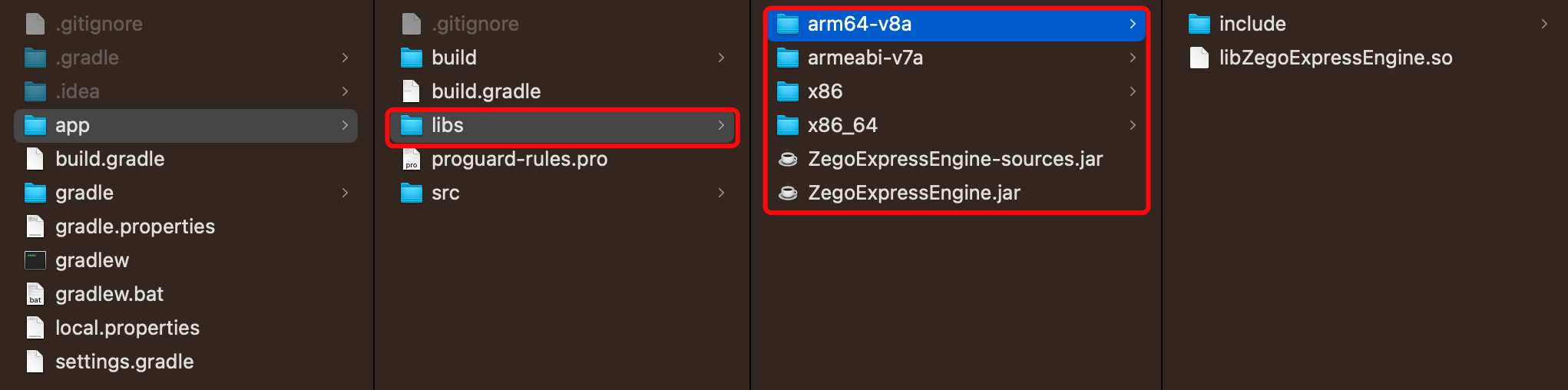

2. Copy the "other files (except .aar files)" in the decompressed "release/Library/" directory to your project directory, such as "app/libs".

   The "include" directory under the architecture directory is the C++ header file of the SDK, which can be ignored if you only use the Java interface for development.



3. Add the SDK reference and open the “build.gradle” file under the “app” directory.

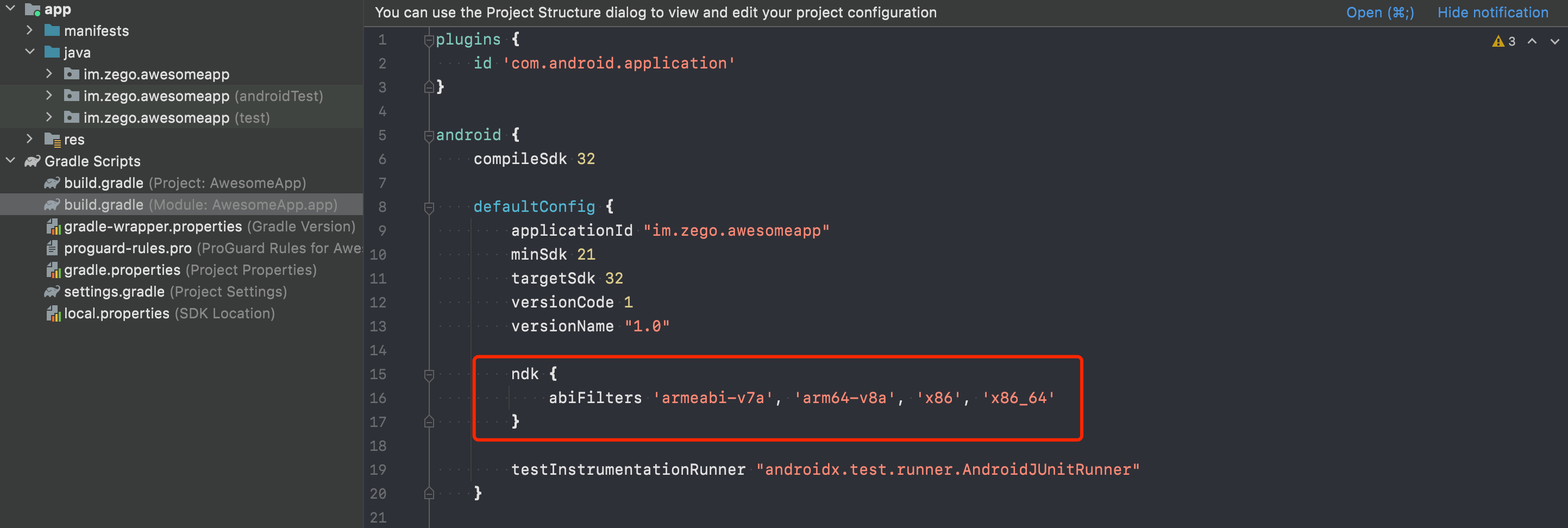

   1. Add the "ndk" node to the "defaultConfig" node to specify the supported architectures.



      ndk {
          abiFilters 'armeabi-v7a', 'arm64-v8a', 'x86', 'x86_64'
      }

      Decide which architecture to support based on the actual situation. Usually you only need to keep "armeabi-v7a" and "arm64-v8a" when publishing the App, which can reduce the APK package size.

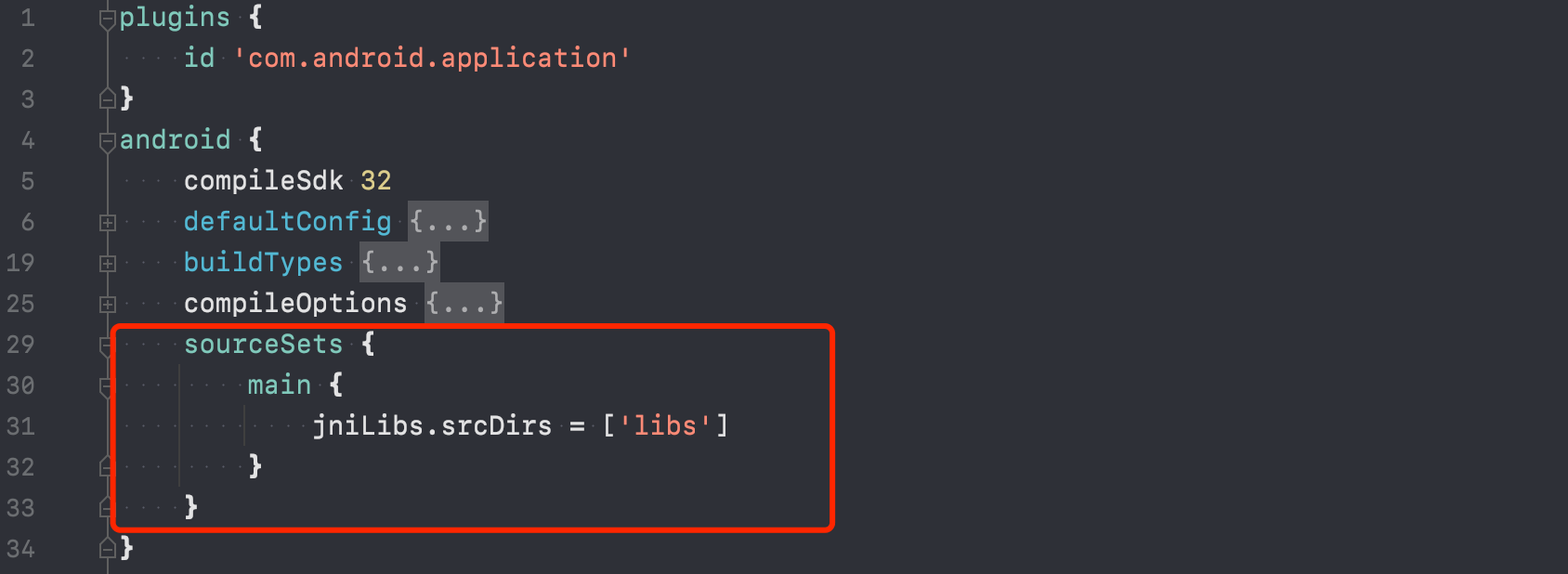

   2. Add a "sourceSets" node to the "android" node, and specify the directory where "libs" is located.

      The "libs" directory in the sample code is just an example, developers can fill in according to the actual path.


      sourceSets {
          main {
              jniLibs.srcDirs = ['libs']
          }
      }

   3. Introduce all jars under "libs" in the "dependencies" node.

      dependencies {
          implementation fileTree(dir: 'libs', include: ['*.jar'])
          ......
      }

package com.zegocloud.demo.quickstart;

import android.os.Bundle;
import android.view.View;
import android.widget.Toast;

import androidx.appcompat.app.AppCompatActivity;

import im.zego.zegoexpress.ZegoExpressEngine;
import im.zego.zegoexpress.callback.IZegoEventHandler;
import im.zego.zegoexpress.constants.ZegoPlayerState;
import im.zego.zegoexpress.constants.ZegoPublisherState;
import im.zego.zegoexpress.constants.ZegoRoomStateChangedReason;
import im.zego.zegoexpress.constants.ZegoUpdateType;
import im.zego.zegoexpress.entity.ZegoCanvas;
import im.zego.zegoexpress.entity.ZegoRoomConfig;
import im.zego.zegoexpress.entity.ZegoStream;
import im.zego.zegoexpress.entity.ZegoUser;

import java.util.ArrayList;

import org.json.JSONObject;

public class CallPageActivity extends AppCompatActivity {
    private String userID;
    private String userName;

    // The value of `roomID` is generated locally and must be globally unique.
    // Users must log in to the same room to call each other.
    private String roomID;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_call_page);
        userID = getIntent().getStringExtra("userID");
        userName = getIntent().getStringExtra("userName");
        roomID = getIntent().getStringExtra("roomID");

        startListenEvent();
        loginRoom();
        // Set a listener for the call stopping button.
        findViewById(R.id.callEndButton).setOnClickListener(new View.OnClickListener() {
            // Click to stop a call.
            @Override
            public void onClick(View view) {
                finish();
            }
        });
    }

    @Override
    protected void onStop() {
        super.onStop();
        if (isFinishing()) {
            stopListenEvent();
            logoutRoom();
        }
    }

    void startPreview() {
        ZegoCanvas previewCanvas = new ZegoCanvas(findViewById(R.id.preview));
        ZegoExpressEngine.getEngine().startPreview(previewCanvas);
    }

    void stopPreview() {
        ZegoExpressEngine.getEngine().stopPreview();
    }

    // Log in to a room.
    void loginRoom() {
        ZegoUser user = new ZegoUser(userID, userName);
        ZegoRoomConfig roomConfig = new ZegoRoomConfig();
        // The `onRoomUserUpdate` callback can be received only when
        // `ZegoRoomConfig` in which the `isUserStatusNotify` parameter is set to
        // `true` is passed.
        roomConfig.isUserStatusNotify = true;
        ZegoExpressEngine.getEngine().loginRoom(roomID, user, roomConfig, (int error, JSONObject extendedData) -> {
            // Room login result. This callback is sufficient if you only need to
            // check the login result.
            if (error == 0) {
                // Login successful.
                // Start the preview and stream publishing.
                Toast.makeText(this, "Login successful.", Toast.LENGTH_LONG).show();
                startPreview();
                startPublish();
            } else {
                // Login failed. For details, see [Error codes\|_blank](/404).
                Toast.makeText(this, "Login failed. error = " + error, Toast.LENGTH_LONG).show();
            }
        });
    }

    void logoutRoom() {
        ZegoExpressEngine.getEngine().logoutRoom();
    }


    void startPublish() {
        // After calling the `loginRoom` method, call this method to publish streams.
        // The StreamID must be unique in the room.
        String streamID = roomID + "_" + userID + "_call";
        ZegoExpressEngine.getEngine().startPublishingStream(streamID);
    }


    void stopPublish() {
        ZegoExpressEngine.getEngine().stopPublishingStream();
    }


    void startPlayStream(String streamID) {
        findViewById(R.id.remoteUserView).setVisibility(View.VISIBLE);
        ZegoCanvas playCanvas = new ZegoCanvas(findViewById(R.id.remoteUserView));
        ZegoExpressEngine.getEngine().startPlayingStream(streamID, playCanvas);
    }

    void stopPlayStream(String streamID) {
        ZegoExpressEngine.getEngine().stopPlayingStream(streamID);
        findViewById(R.id.remoteUserView).setVisibility(View.GONE);
    }

    void startListenEvent() {
        ZegoExpressEngine.getEngine().setEventHandler(new IZegoEventHandler() {
            @Override
            // Callback for updates on the status of the streams in the room.
            public void onRoomStreamUpdate(String roomID, ZegoUpdateType updateType, ArrayList<ZegoStream> streamList, JSONObject extendedData) {
                super.onRoomStreamUpdate(roomID, updateType, streamList, extendedData);
                // When `updateType` is set to `ZegoUpdateType.ADD`, an audio and video
                // stream is added, and you can call the `startPlayingStream` method to
                // play the stream.
                if (updateType == ZegoUpdateType.ADD) {
                    startPlayStream(streamList.get(0).streamID);
                } else {
                    stopPlayStream(streamList.get(0).streamID);
                }
            }

            @Override
            // Callback for updates on the status of other users in the room.
            // Users can only receive callbacks when the isUserStatusNotify property of ZegoRoomConfig is set to `true` when logging in to the room (loginRoom).
            public void onRoomUserUpdate(String roomID, ZegoUpdateType updateType, ArrayList<ZegoUser> userList) {
                super.onRoomUserUpdate(roomID, updateType, userList);
                // You can implement service logic in the callback based on the login
                // and logout status of users.
                if (updateType == ZegoUpdateType.ADD) {
                    for (ZegoUser user : userList) {
                        String text = user.userID + "logged in to the room.";
                        Toast.makeText(getApplicationContext(), text, Toast.LENGTH_LONG).show();
                    }
                } else if (updateType == ZegoUpdateType.DELETE) {
                    for (ZegoUser user : userList) {
                        String text = user.userID + "logged out of the room.";
                        Toast.makeText(getApplicationContext(), text, Toast.LENGTH_LONG).show();
                    }
                }
            }

            @Override
            // Callback for updates on the current user's room connection status.
            public void onRoomStateChanged(String roomID, ZegoRoomStateChangedReason reason, int i, JSONObject jsonObject) {
                super.onRoomStateChanged(roomID, reason, i, jsonObject);
                if (reason == ZegoRoomStateChangedReason.LOGINING) {
                    // Logging in to a room. When `loginRoom` is called to log in to a
                    // room or `switchRoom` is called to switch to another room, the room
                    // enters this status, indicating that it is requesting a connection
                    // to the server. On the app UI, the status of logging in to the room
                    // is displayed.
                } else if (reason == ZegoRoomStateChangedReason.LOGINED) {
                    // Logging in to a room succeeds. When a user successfully logs in to
                    // a room or switches the room, the room enters this status. In this
                    // case, the user can receive notifications of addition or deletion of
                    // other users and their streams in the room. Only after a user
                    // successfully logs in to a room or switches the room,
                    // `startPublishingStream` and `startPlayingStream` can be called to
                    // publish and play streams properly.
                } else if (reason == ZegoRoomStateChangedReason.LOGIN_FAILED) {
                    // Logging in to a room fails. When a user fails to log in to a room
                    // or switch the room due to a reason such as incorrect AppID or
                    // Token, the room enters this status.
                    Toast.makeText(getApplicationContext(), "ZegoRoomStateChangedReason.LOGIN_FAILED", Toast.LENGTH_LONG).show();
                } else if (reason == ZegoRoomStateChangedReason.RECONNECTING) {
                    // The room connection is temporarily interrupted. The SDK will retry
                    // internally if the interruption is caused by poor network quality.
                } else if (reason == ZegoRoomStateChangedReason.RECONNECTED) {
                    // Reconnecting a room succeeds. The SDK will retry internally if the
                    // interruption is caused by poor network quality. If the reconnection
                    // is successful, the room enters this status.
                } else if (reason == ZegoRoomStateChangedReason.RECONNECT_FAILED) {
                    // Reconnecting a room fails. The SDK will retry internally if the
                    // interruption is caused by poor network quality. If the reconnection
                    // fails, the room enters this status.
                    Toast.makeText(getApplicationContext(), "ZegoRoomStateChangedReason.RECONNECT_FAILED", Toast.LENGTH_LONG).show();
                } else if (reason == ZegoRoomStateChangedReason.KICK_OUT) {
                    // The server forces a user to log out of a room. If a user who has
                    // logged in to room A tries to log in to room B, the server forces
                    // the user to log out of room A and room A enters this status.
                    Toast.makeText(getApplicationContext(), "ZegoRoomStateChangedReason.KICK_OUT", Toast.LENGTH_LONG).show();
                } else if (reason == ZegoRoomStateChangedReason.LOGOUT) {
                    // Logging out of a room succeeds. This is the default status of a
                    // room before login. If a user successfully logs out of a room by
                    // calling `logoutRoom` or `switchRoom`, the room enters this status.
                } else if (reason == ZegoRoomStateChangedReason.LOGOUT_FAILED) {
                    // Logging out of a room fails. If a user fails to log out of a room
                    // by calling `logoutRoom` or `switchRoom`, the room enters this
                    // status.
                }
            }

            // Status notification of audio and video stream publishing.
            @Override
            public void onPublisherStateUpdate(String streamID, ZegoPublisherState state, int errorCode, JSONObject extendedData) {
                super.onPublisherStateUpdate(streamID, state, errorCode, extendedData);
                if (errorCode != 0) {
                    // Stream publishing exception.
                }
                if (state == ZegoPublisherState.PUBLISHING) {
                    // Publishing streams.
                } else if (state == ZegoPublisherState.NO_PUBLISH) {
                    // Streams not published.
                    Toast.makeText(getApplicationContext(), "ZegoPublisherState.NO_PUBLISH", Toast.LENGTH_LONG).show();
                } else if (state == ZegoPublisherState.PUBLISH_REQUESTING) {
                    // Requesting stream publishing.
                }
            }

            // Status notifications of audio and video stream playing.
            // This callback is received when the status of audio and video stream
            // playing of a user changes. If an exception occurs during stream playing
            // due to a network interruption, the SDK automatically retries to play
            // the streams.
            @Override
            public void onPlayerStateUpdate(String streamID, ZegoPlayerState state, int errorCode, JSONObject extendedData) {
                super.onPlayerStateUpdate(streamID, state, errorCode, extendedData);
                if (errorCode != 0) {
                    // Stream playing exception.
                    Toast.makeText(getApplicationContext(), "onPlayerStateUpdate, state:" + state + "errorCode:" + errorCode, Toast.LENGTH_LONG).show();
                }
                if (state == ZegoPlayerState.PLAYING) {
                    // Playing streams.
                } else if (state == ZegoPlayerState.NO_PLAY) {
                    // Streams not played.
                    Toast.makeText(getApplicationContext(), "ZegoPlayerState.NO_PLAY", Toast.LENGTH_LONG).show();
                } else if (state == ZegoPlayerState.PLAY_REQUESTING) {
                    // Requesting stream playing.
                }
            }
        });
    }

    void stopListenEvent() {
        ZegoExpressEngine.getEngine().setEventHandler(null);
    }

}
