Quick Start
Introdution
This guide describes how to integrate the SDK and implement a basic live streaming using ZEGOCLOUD's ZegoExpressEngine SDK.
Prerequisites
Before you begin, make sure you complete the following:
- React Native 0.60.0 or later
- An iOS device or iOS Simulator that is running on iOS 9.0 or later and supports audio and video. We recommend you use a real device.
- An Android device or simulator that is running on Android 4.4 or later and supports audio and video. We recommend you use a real device (remember to enable USB debugging for the device).
- Sign up and create a project in Admin Console.

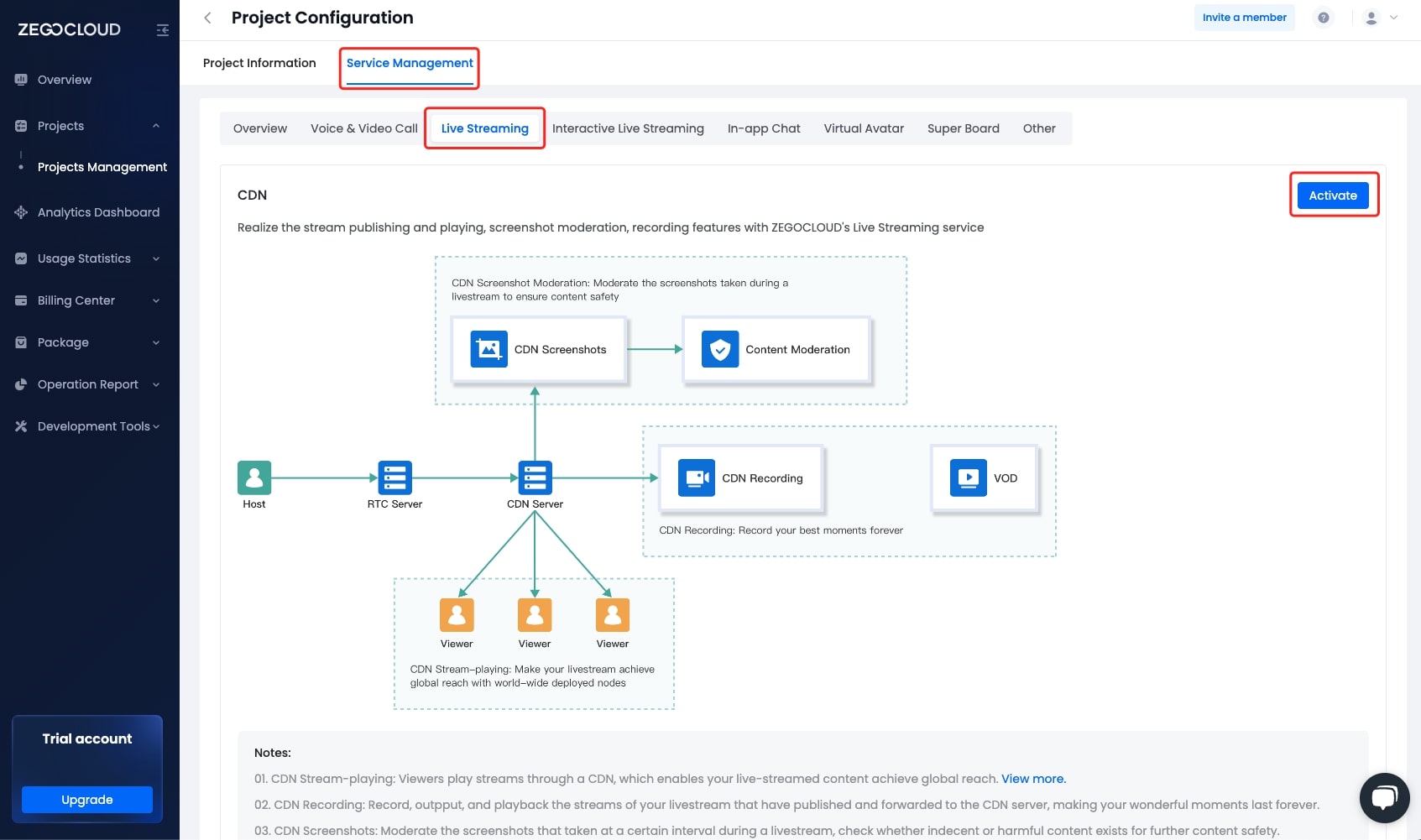

- Activate the
Live Streaming
service.
Integrate the SDK
Optional: Create a new project
Skip to this step if a project already exists.
Create a new project
After configuring the development environment, run the command react-native init YourProject
.
Import the SDK
- Enter the root directory of your project, open the
package.json
, and add the"zego-express-engine-reactnative": "^x.y.z"
to thedependencies
.
x.y.z is the latest SDK version number, which can be obtained by running an npm command.
In the root directory of your project, run the
npm install zego-express-engine-reactnative --save
command or theyarn add zego-express-engine-reactnative
command to install the SDK.Go to the iOS root directory, run the
pod install
command to install the dependencies.
Once you've done the operations above, you will be available to use the zego-express-engine-reactnative SDK
in your project either in JavaScript or TypeScript (TypeScript is recommended).
Add permissions
Permissions can be set as needed.
- Android
Open the app/src/main/AndroidManifest.xml
file, and add the following code:
<!-- Permissions required by the SDK -->
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
<uses-permission android:name="android.permission.RECORD_AUDIO" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.CAMERA" />
<uses-permission android:name="android.permission.BLUETOOTH" />
<uses-permission android:name="android.permission.MODIFY_AUDIO_SETTINGS" />
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<!-- Permissions required by the App -->
<uses-permission android:name="android.permission.READ_PHONE_STATE" />
<uses-permission android:name="android.permission.WAKE_LOCK" />
<uses-feature
android:glEsVersion="0x00020000"
android:required="true" />
<uses-feature android:name="android.hardware.camera" />
<uses-feature android:name="android.hardware.camera.autofocus" />
Because Android 6.0 requires dynamic permissions for some important permissions, you will need to apply for dynamic permissions by referring to the following code after applying for static permissions through the AndroidMainfest.xml
file.
import {PermissionsAndroid} from 'react-native';
const granted = PermissionsAndroid.check(PermissionsAndroid.PERMISSIONS.CAMERA,
PermissionsAndroid.RECORD_AUDIO);
granted.then((data)=>{
if(!data) {
const permissions = [PermissionsAndroid.PERMISSIONS.RECORD_AUDIO, PermissionsAndroid.PERMISSIONS.CAMERA];
PermissionsAndroid.requestMultiple(permissions);
}
}).catch((err)=>{
console.log(err.toString());
})
}
- iOS

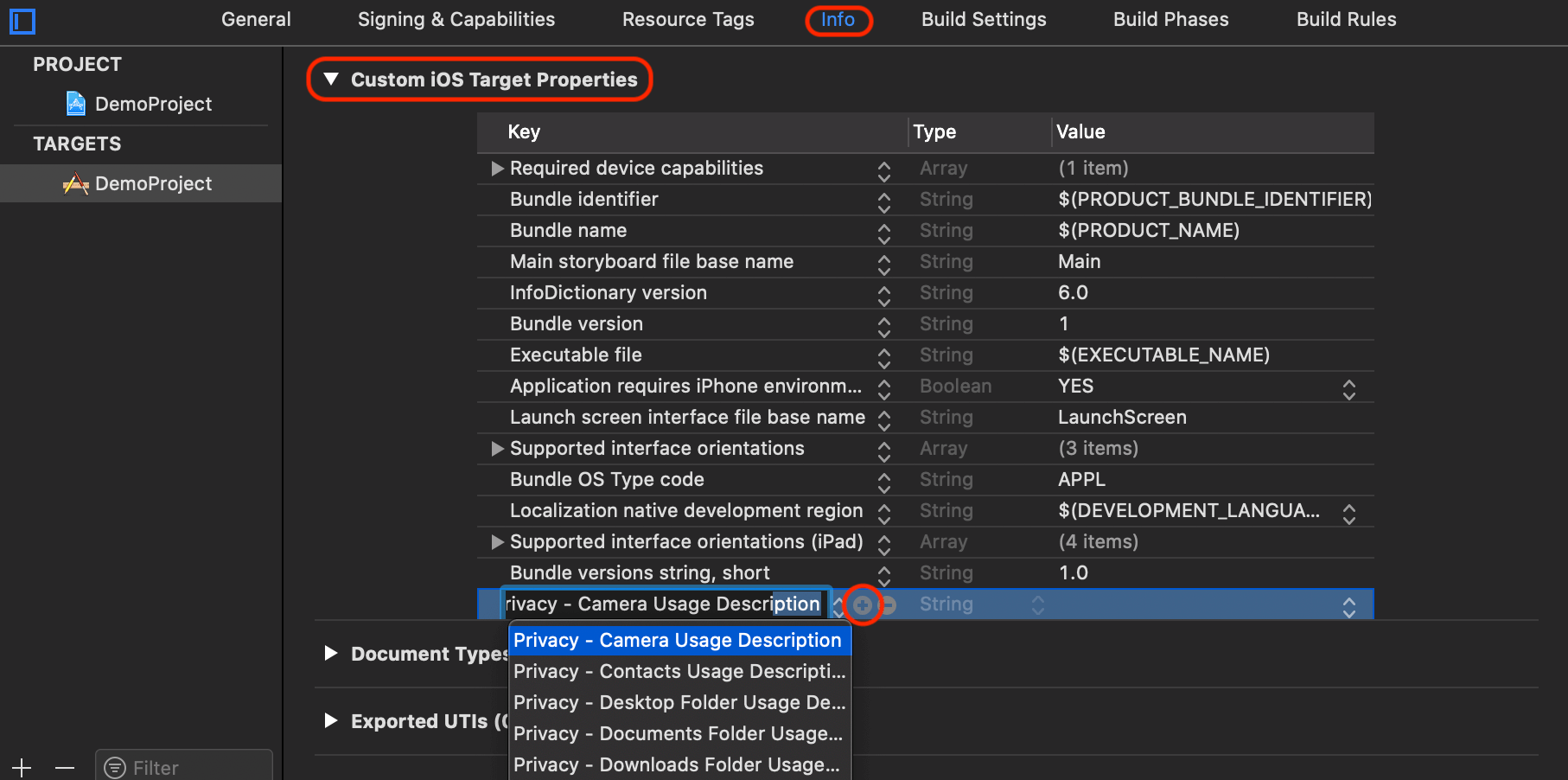

- In Xcode, select the target project, go to Info > Custom iOS Target Properties.
Add the + button to add microphone and camera permissions.
Privacy - Camera Usage Description
Privacy - Microphone Usage Description

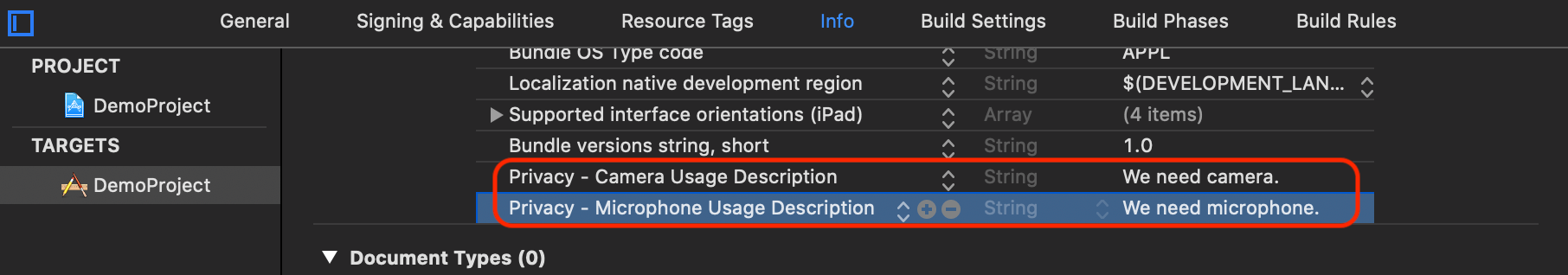

After the permission is added, it will be shown as below:
Implement a basic live streaming
Understand the tech

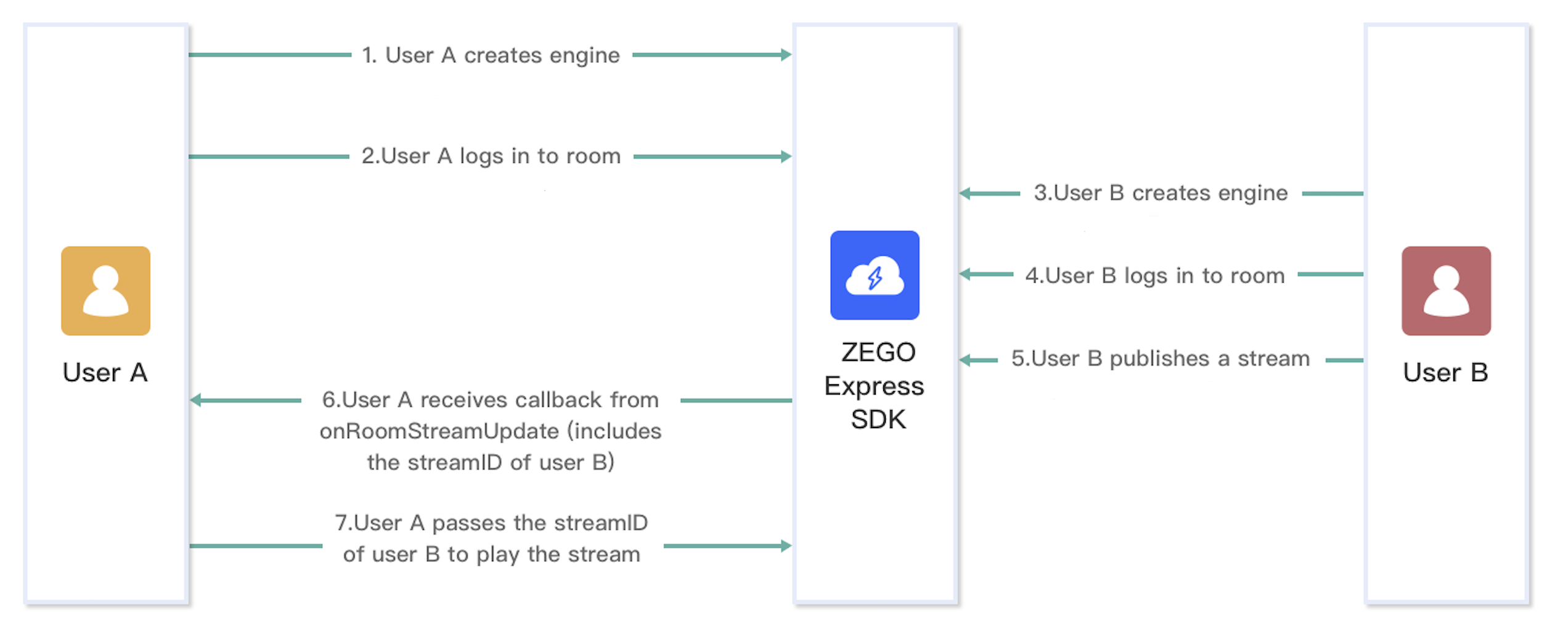

The following diagram shows the basic process of User A playing a stream published by User B:
For a better understanding, you can check the key concepts of ZegoExpressEngine SDK:
Sample code
Here is the sample code for implementing ve streaming functions. Feel free to refer to it when developing.
Create a ZegoExpressEngine engine
Call the createEngineWithProfile
method and set the appID
and appSign
parameters to the applied AppID and AppSign, respectively.
To register callbacks, you can implement some methods in ZegoEventListener
as required and call the on
method after engine creation to set callbacks.
The SDK also supports Token-based authentication. If you want to upgrade the authentication mode, see Guide for upgrading the authentication mode from using the AppSign to Token.
// Import
import ZegoExpressEngine from 'zego-express-engine-reactnative';
// Use the general scenario.
const profile = {
appID : xxx,
// The AppSign can only meet simple authentication requirements. If you want to use the Token for authentication, which is securer, see [Guide for upgrading the authentication mode from using the AppSign to Token](https://docs.zegocloud.com/faq/token_upgrade).
// You can obtain the AppSign in the [ZEGOCLOUD Admin Console](https://console.zego.im/dashboard). The format is similar to @"39011cbxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx".
appSign: '39011cbxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx',
scenario : 0
};
ZegoExpressEngine.createEngineWithProfile(profile)
Log in to a room
Log in
Call the loginRoom
method to log in to a room. If the room does not exist, calling this method will create and log in to the room.
The values of the roomID
and user
parameters are generated locally, but the following conditions must be met:
- The value of
roomID
must be globally unique under the same AppID. - The value of
userID
must be globally unique under the same AppID. You are advised to associateuserID
with the account system of your service.
let roomConfig = new ZegoRoomConfig();
// If you use the AppSign for authentication, you do not need to set the `token` parameter. If you want to use the Token for authentication, which is securer, see [Guide for upgrading the authentication mode from using the AppSign to Token](https://docs.zegocloud.com/faq/token_upgrade).
// roomConfig.token = "xxxx";
// The `onRoomUserUpdate` callback can be received only when `ZegoRoomConfig` in which the `isUserStatusNotify` parameter is set to `true` is passed.
roomConfig.isUserStatusNotify = true;
// Room login.
// Log in to a room.
ZegoExpressEngine.instance().loginRoom('room1', {'userID': 'id1', 'userName': 'user1'}, roomConfig);
Listen for callback events after room login
Based on your service requirements, listen for event notifications after room login, such as room connection, user, and stream status updates.
roomStateUpdate
: room connection status callback. After a user logs in to a room, when the room connection status changes (for example, the room is disconnected or login authentication fails), the SDK triggers this callback to send a notification.roomUserUpdate
: user status update callback. After a user logs in to a room, when another user joins or leaves the room, the SDK triggers this callback to send a notification.The
roomUserUpdate
callback can be received only whenZegoRoomConfig
in which theisUserStatusNotify
parameter is set totrue
is passed in theloginRoom
method.roomStreamUpdate
: stream status update callback. After a user logs in to a room, when another user in the room publishes or deletes an audio or video stream, the SDK triggers this callback to send a notification.
- The
roomUserUpdate
callback can be received only whenZegoRoomConfig
in which theisUserStatusNotify
parameter is set totrue
is passed in theloginRoom
method. - Generally, if a user wants to play a video published by another user, the user can call the
startPlayingStream
method in the stream status update (stream addition) callback to play the audio and video streams.
// Common room-related callbacks
ZegoExpressEngine.instance().on('roomStateUpdate', (roomID, state, errorCode, extendedData) => {
// Room connection status callback. After a user logs in to a room, when the room connection status changes (for example, the room is disconnected or login authentication fails), the SDK triggers this callback to send a notification.
}); ;
ZegoExpressEngine.instance().on('roomUserUpdate', (roomID, updateType, userList) => {
// User status update callback. After a user logs in to a room, when another user joins or leaves the room, the SDK triggers this callback to send a notification.
});
ZegoExpressEngine.instance().on('roomStreamUpdate', (roomID, updateType, streamList) => {
// Stream status update callback. After a user logs in to a room, when another user in the room publishes or deletes an audio or video stream, the SDK triggers this callback to send a notification.
});
Publish streams
Start to publish streams
Call the startPublishingStream
method and set the streamID
parameter to publish a local audio and video stream to remote users.
The value of streamID
must be globally unique under the same AppID. If different streams are published with the same streamID
, the ones that are published after the first one will fail.
/** Start to publish streams.*/
ZegoExpressEngine.instance().startPublishingStream("streamID");
Optional: Start the local preview
Set the preview view and start the local preview
To view the local videos, call the startPreview
method to set the preview view and start the local preview.
import { findNodeHandle } from 'react-native';
// Obtain `ref` of `zego_play_view`.
let localViewRef = findNodeHandle(this.refs.zego_preview_view);
// Start the local preview.
ZegoExpressEngine.instance().startPreview({
'reactTag': localViewRef,
'viewMode': 0,
'backgroundColor': 0
});
// react render
render() {
return (
<View>
<ZegoTextureView ref='zego_preview_view'/>
</view>
)
}
Listen for callback events after stream publishing starts
Based on your service requirements, listen for event notifications after stream publishing starts, such as stream publishing status updates.
publisherStateUpdate
: stream publishing status update callback. If the stream publishing status changes (for example, a stream publishing exception occurs due to network interruption) after the stream publishing method is successfully called, the SDK triggers this callback to send a notification while retrying to publish the stream.
ZegoExpressEngine.instance().on("publisherStateUpdate", (streamID, state, errorCode, extendedData) => {
// If the stream publishing status changes (for example, a stream publishing exception occurs due to network interruption) after the stream publishing method is successfully called, the SDK triggers this callback to send a notification while retrying to publish the stream
//....
});
Play streams
1. Start to play streams
Call the startPlayingStream
method and set the streamID
parameter to play an audio and video stream published by a remote user.
- You can obtain the value of
streamID
corresponding to the stream that has been published by a remote user from theroomStreamUpdate
callback. - The value of
streamID
must be globally unique.
import { findNodeHandle } from 'react-native';
// Obtain `ref` of `zego_play_view`.
let remoteViewRef = findNodeHandle(this.refs.zego_play_view);
// Start to play streams.
ZegoExpressEngine.instance().startPlayingStream("streamID", {
'reactTag': remoteViewRef,
'viewMode': 0,
'backgroundColor': 0
});
// react render
render() {
return (
<View>
<ZegoTextureView ref='zego_play_view'/>
</view>
)
}
Listen for callback events after stream playing starts
Based on your service requirements, listen for event notifications after stream playing starts, such as stream playing status updates.
playerStateUpdate
: stream playing status update callback. If the stream playing status changes (for example, a stream playing exception occurs due to network interruption) after the stream playing method is successfully called, the SDK triggers this callback to send a notification while retrying to play the stream.
ZegoExpressEngine.instance().on("playerStateUpdate", (streamID, state, errorCode, extendedData) => {
/** If the stream playing status changes (for example, a stream playing exception occurs due to network interruption) after the stream playing method is successfully called, the SDK triggers this callback to send a notification while retrying to play the stream.*/
//....
});
Test out real-time audio and video features
We recommend you run your project on a real device. If your app runs successfully, you should hear the sound and see the video captured locally from your device.
To test out the real-time audio and video features, visit the ZEGO Express Web Demo, and enter the same AppID
, Server
and RoomID
to join the same room. If it runs successfully, you should be able to view the video from both the local side and the remote side, and hear the sound from both sides as well.
In audio-only scenarios, no video will be captured and displayed.
Stop publishing or playing streams
Stop the stream publishing and preview
Call the stopPublishingStream
method to stop publishing local audio or video streams and end the call.
/** Stop publishing streams. */
ZegoExpressEngine.instance().stopPublishingStream();
If the local preview is started, call the stopPreview
method to stop it based on your service requirements after stopping publishing streams.
// Stop the local preview.
ZegoExpressEngine.instance().stopPreview();
Stop playing streams
Call the stopPlayingStream
method to stop playing audio and video streams published by remote users.
// Stop playing streams.
ZegoExpressEngine.instance().stopPlayingStream("streamID");
Log out of a room
Call the logoutRoom
method to log out of a room. In this case, you will receive the roomStateUpdate
callback locally, which carries the result of calling the logoutRoom
method, and stream publishing, stream playing, and the local preview will all be stopped.
// Log out of a room.
ZegoExpressEngine.instance().logoutRoom('room1');
Destroy a ZegoExpressEngine instance
Call the destroyEngine
method to destroy a ZegoExpressEngine instance so that the resources used by the SDK can be released.
ZegoExpressEngine.destroyEngine();
When destroying a ZegoExpressEngine instance, you can use the await
keyword as required to wait asynchronously, ensuring that the hardware resources are completely released.
FAQ
1. Can I integrate the SDK with React Native 0.60.0 or earlier?
The answer is No. The zego-express-engine-reactnative SDK only supports React Native 0.60.0 or later. To integrate the SDK, upgrade the project version first.
2. After importing the SDK into the project, do I need to manually run the 'react-native link zego-express-engine-reactnative' command to link Native Modules?
The answer is No. React Native has supported automatic linking to Native Modules starting from version 0.60.0.
