How can I obtain the SDK stack traces?

Products / Plugins:AI Effects

Platform / Framework:iOS / Android / macOS

Last updated:2021-09-26 15:22


Follow these procedures to obtain the SDK stack traces for different platforms.

  • Android

    • Analyze logs in real time

      adb logcat | ndk-stack -sym $PROJECT_DYNAMIC_LIB_PATH

      Note:

      • $PROJECT_DYNAMIC_LIB_PATH is the path to the dynamic library directory (where the.so files are located) of the target ABI (armeabi, armeabi-v7a, or arm64-v8a).

      For example:

      adb logcat | ndk-stack -sym /path/to/your/project/armeabi-v7a

    • Analyze the log files after obtaining them

      Use adb logca to save the log files, and then analyze them by using ndk-stack.

      adb logcat> xx.log

      ndk-stack -sym $PROJECT_DYNAMIC_LIB_PATH -dump $LOG_FILE

      Note:

      • $PROJECT_DYNAMIC_LIB_PATH is the path to the dynamic library directory (where the.so files are located) of the target ABI (armeabi, armeabi-v7a, or arm64-v8a).

      • $LOG_FILE is the name of the output log file.

      For example:

      adb ​​logcat> crash.log

      ndk-stack -sym /path/to/your/project/armeabi-v7a -dump crash.log

  • iOS/iPadOS

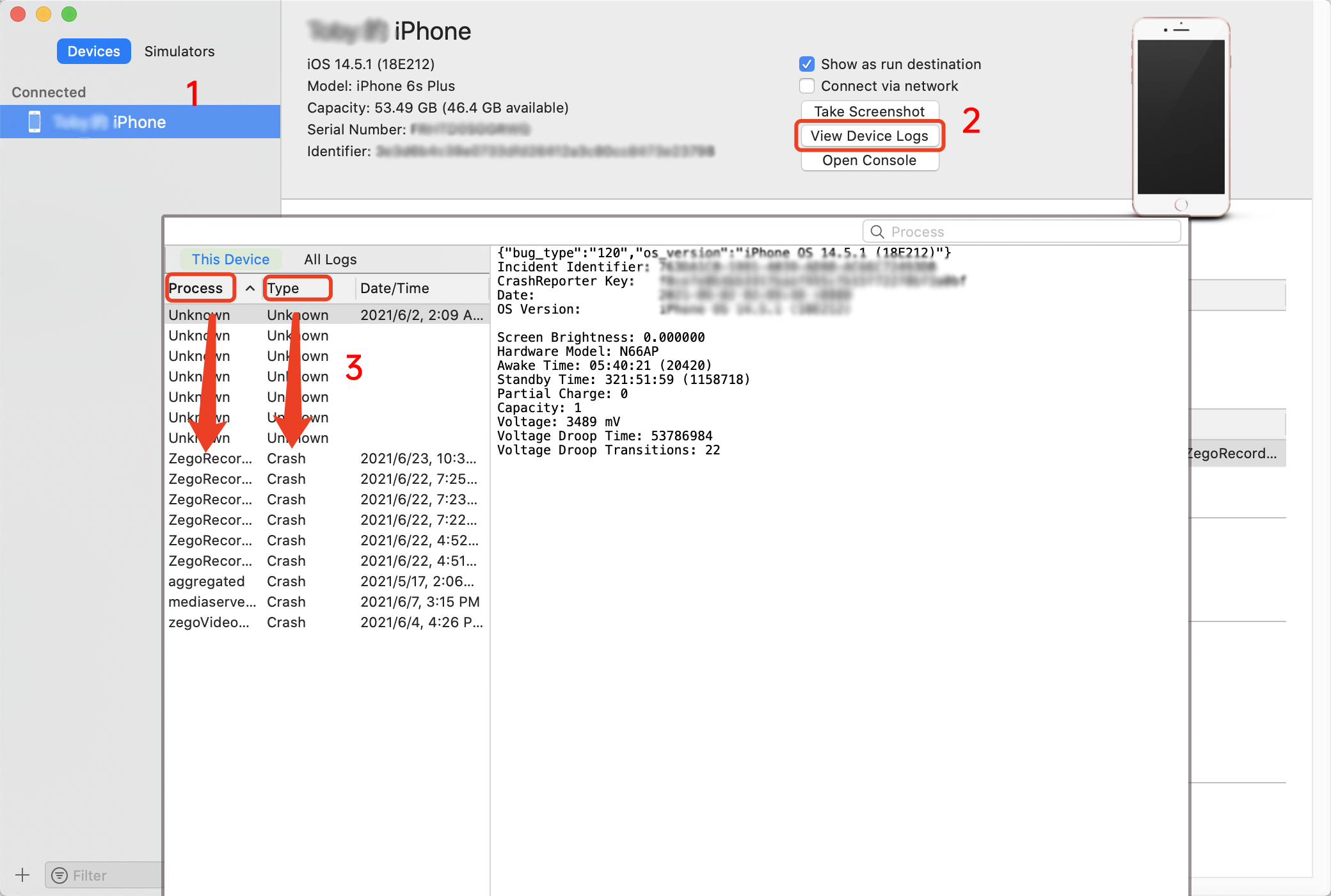

    1. Connect your iOS device to the Mac.

    2. Open Xcode, and select Window > Devices and Simulators on the menu bar.

    3. Select your device on the left pane, click View Device Logs.

    4. Select the log entries that meet the following criteria:

      a. Process is your application name.

      b. Type is crash.

      c. Date/Time is in the time period when the crash happened.

      /Pics/FAQ/View_Device_Logs.png

    5. Right-click the log entry and select Export Log, and save the log details as a .crash file as prompted.

  • macOS

    Go to ~/Library/Logs/DiagnosticReports, and the stack traces are in the files that end with the suffix .crash.
