Implement a basic video call

Introduction

This guide describes how to implement basic audio and video functions with the ZEGO Express SDK.

Basic concepts:

• ZEGO Express SDK: The real-time audio and video SDK developed by ZEGO to help you quickly build high-quality, low-latency, and smooth real-time audio and video communications into your apps across different platforms, with support for massive concurrency.

• Stream publishing: The process of the client app capturing and transmitting audio and video streams to the ZEGO Real-Time Audio and Video Cloud.

• Stream playing: The process of the client app receiving and playing audio and video streams from the ZEGO Real-Time Audio and Video Cloud.

• Room: The service for organizing groups of users, allowing users in the same room to send and receive real-time audio, video, and messages to each other.

  1. Logging in to a room is required to perform stream publishing and playing.
  2. Users can only receive notifications about changes in the room they are in (such as new users joining the room, existing users leaving the room, new audio and video streams being published, etc.).

For more basic concepts, refer to the Glossary.

Prerequisites

Before you begin, make sure you complete the following steps:

1. Create a project in ZEGOCLOUD Admin Console, and get the AppID of your project.
2. Integrate the ZEGO Express SDK into your project. For more details, see Quick starts-Integration.

Implementation steps

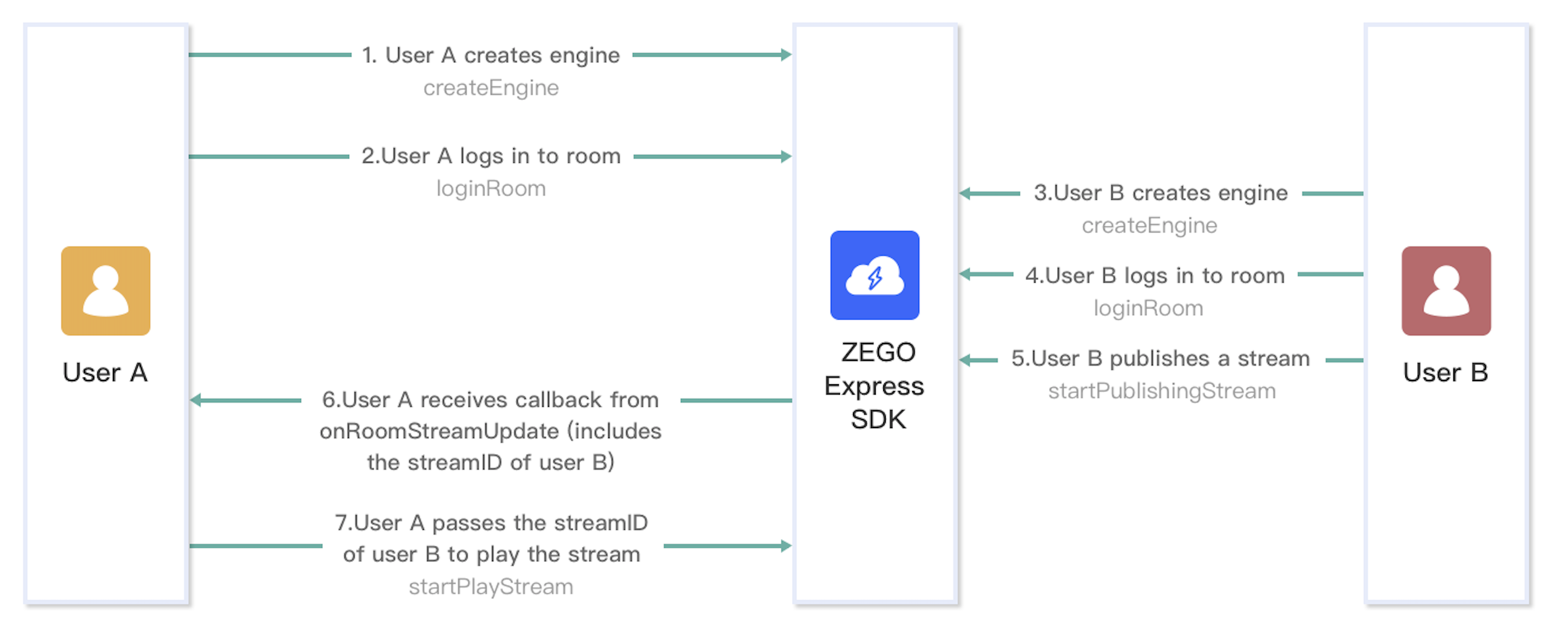

The following diagram shows the basic process of User A playing a stream published by User B.

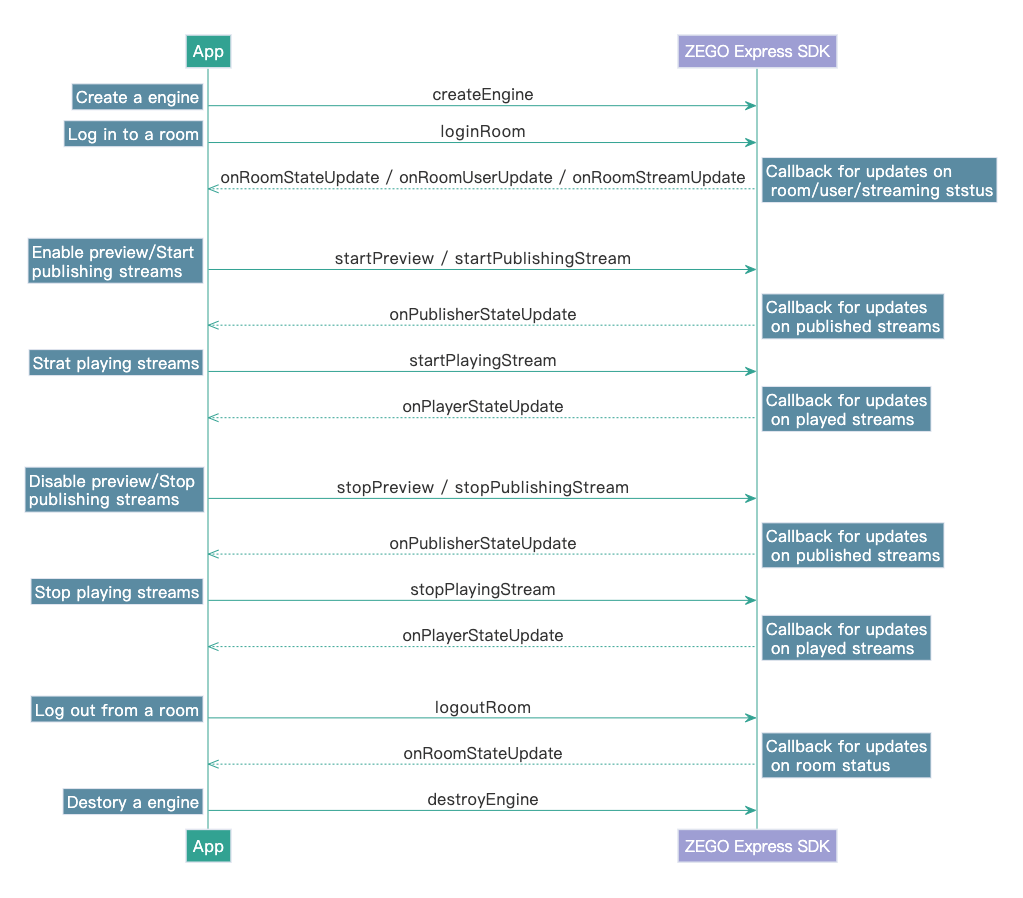

The following diagram shows the API call sequence of the stream publishing and playing process：

The following sections explain each step of this process in more detail.

Create a ZegoExpressEngine instance

1. Optional: Create the UI

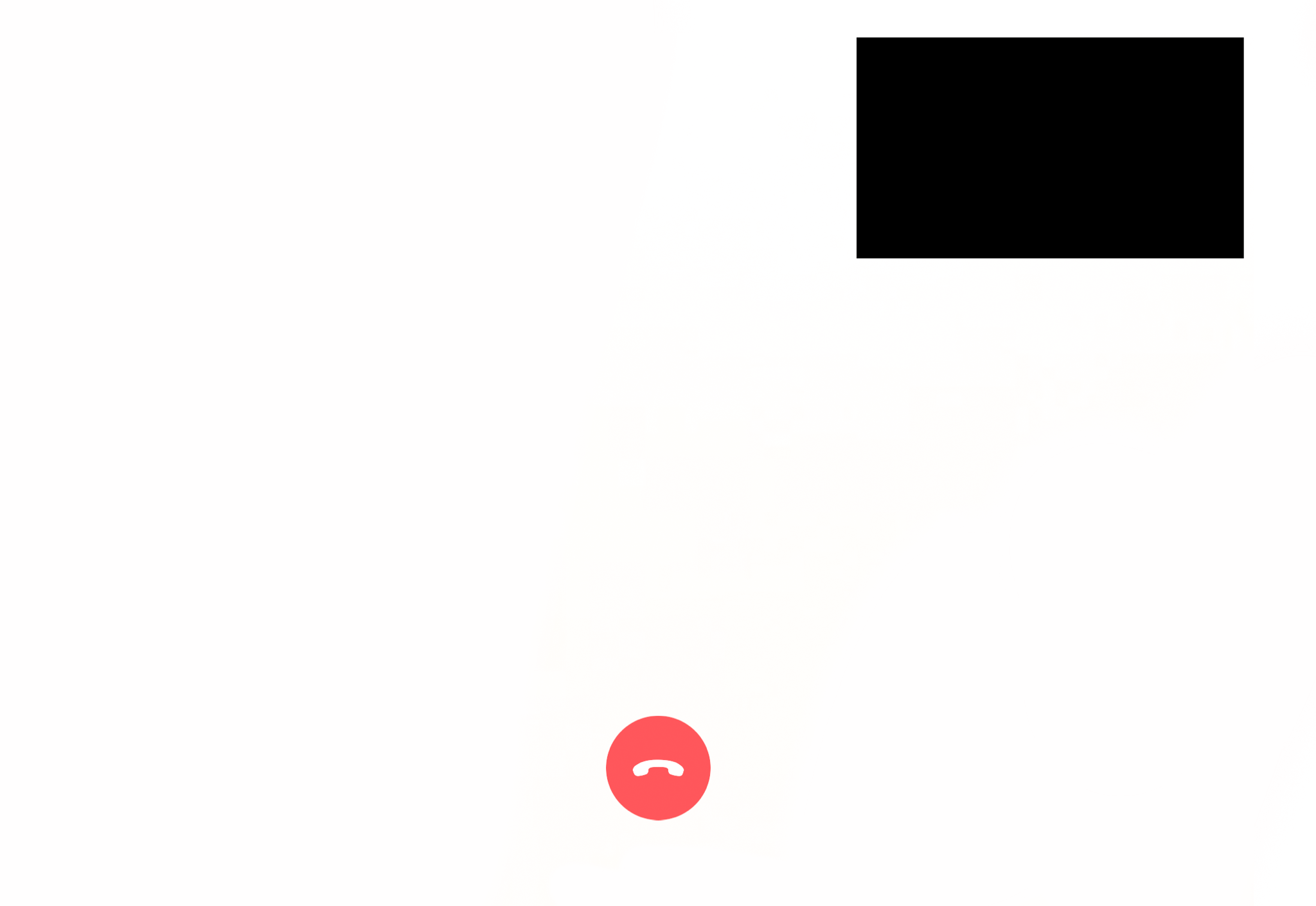

Add UI elements

Before creating a ZegoExpressEngine instance, we recommend you add the following UI elements to implement basic real-time audio and video features:

• A view for local preview
• A view for remote video
• An End button

2. Create a ZegoExpressEngine instance

To create a singleton instance of the ZegoExpressEngine class, call the createEngine method with the AppID of your project.

// Define a ZegoExpressEngine object
ZegoExpressEngine engine;

ZegoEngineProfile profile = new ZegoEngineProfile();
profile.appID = appID; // AppID format：1234567890
profile.scenario = ZegoScenario.General; // General scenario
// Create a ZegoExpressEngine instance
engine = ZegoExpressEngine.CreateEngine(profile);

Log in to a room

1. Log in

To log in to a room, call the loginRoom method. If the roomID does not exist, a new room will be created and you will log in automatically when you call the loginRoom method.

// create a user
ZegoUser user = new ZegoUser();
user.userId="xxx";
user.userName="xxxx";

// set the token
ZegoRoomConfig roomConfig = new ZegoRoomConfig();
roomConfig.token = "xxxx";

// Log in to a room
engine.LoginRoom("123666", user, roomConfig);

2. Listen for and handle the event callbacks for updates on users and streams in the room

To listen for and handle various events that may happen after logging in to a room, you can implement the corresponding event callback methods of the event handler as needed. The following are some common event callbacks related to room users and streams:

• onRoomStateUpdate: Callback for updates on current user's room connection status. When the current user's room connection status changes (for example, when the current user is disconnected from the room or login authentication fails), the SDK sends out the event notification through this callback.

• onRoomUserUpdate: Callback for updates on the status of other users in the room. When other users join or leave the room, the SDK sends out the event notification through this callback.

• onRoomStreamUpdate: Callback for updates on the status of the streams in the room. When new streams are published to the room or existing streams in the room stop, the SDK sends out the event notification through this callback.

Event callbacks are delegates of the ZegoExpressEngine class. To listen for and handle a specific event callback, assign the callback handling method you implement to the corresponding callback delegate of the ZegoExpressEngine instance.

// Callback for updates on the current user's room connection status.
public void OnRoomStateUpdate(string roomId, ZegoRoomState state, int errorCode, string extendedData) {
    // Implement the callback handling logic as needed.
}

// Callback for updates on the status of other users in the room.
private void OnRoomUserUpdate(string roomId, ZegoUpdateType updateType, List<ZegoUser> userList, uint userCount) {
    // Implement the callback handling logic as needed.
}

// Callback for updates on the status of the streams in the room.
private void OnRoomStreamUpdate(string roomId, ZegoUpdateType updateType, List<ZegoStream> streamInfoList, uint streamInfoCount) {
    // Implement the callback handling logic as needed.
}

// Assign the callback handling methods you implement to the delegates of the engine.
engine.onRoomStateUpdate = OnRoomStateUpdate;
engine.onRoomUserUpdate = OnRoomUserUpdate;
engine.onRoomStreamUpdate = OnRoomStreamUpdate;

Publish streams

1. Start publishing a stream

To start publishing a local audio or video streams to remote users, call the startPublishingStream method with the corresponding Stream ID passed to the streamID parameter.

// Start publishing a stream.
[[ZegoExpressEngine sharedEngine] startPublishingStream:@"stream1"];

2. Optional: Start the local video preview

RawImageVideoSurface localVideoSurface = null;
GameObject mainLocalVideoPlane = null;

mainLocalVideoPlane = GameObject.Find("MainPreViewRawImage");

if (mainLocalVideoPlane != null && localVideoSurface == null)
{
    // Add a RawImageVideoSurface component, and the renderer is RawImage.
    localVideoSurface = mainLocalVideoPlane.AddComponent<RawImageVideoSurface>();
    // Set the RawImageVideoSurface as the view for local video preview.
    localVideoSurface.SetCaptureVideoInfo();
    // Set the engine as the video source.
    localVideoSurface.SetVideoSource(engine);
}

// Start local video preview
engine.StartPreview();

GameObject go = GameObject.CreatePrimitive(PrimitiveType.Plane);// Create a Plane in runtime.

if (go == null)
{
    return;
}
go.name = "preview-render";
// Ensure the video can be displayed on the screen.
go.transform.Rotate(90.0f, -180.0f, 0.0f);
go.transform.position = new Vector3(0.0f, 0.0f, 0.0f);
go.transform.localScale = new Vector3(0.36f, 1f, 0.64f);

// Add a RendererVideoSurface component, and the renderer is the Plane's renderer.
RendererVideoSurface renderer = go.AddComponent<RendererVideoSurface>();
// Set the RendererVideoSurface component as the view for local video preview.
renderer.SetCaptureVideoInfo();
// Set the engine as the video source.
renderer.SetVideoSource(engine);

// Start local video preview
engine.StartPreview();

3. Listen for and handle the event callbacks related to stream publishing

To listen for and handle various events that may happen after stream publishing starts, you can implement the corresponding event callback methods of the event handler as needed. The following is a common event callback related to stream publishing:

• onPublisherStateUpdate: Callback for updates on stream publishing status. After stream publishing starts, if the status changes, (for example, when the stream publishing is interrupted due to network issues and the SDK retries to start publishing the stream again), the SDK sends out the event notification through this callback.

• onPublisherQualityUpdate: Callback for reporting stream publishing quality. After stream publishing starts, the SDK sends out the streaming quality data (resolution, frame rate, bit rate, etc.) regularly through this callback.

Event callbacks are delegates of the ZegoExpressEngine class. To listen for and handle a specific event callback, assign the callback handling method you implement to the corresponding callback delegate of the ZegoExpressEngine instance.

// Callback for updates on stream publishing status.
public void OnPublisherStateUpdate(string streamId, ZegoPublisherState state, int errorCode, string extendedData)
{
    // Implement the callback handling logic as needed.
}

// Callback for updates on stream publishing quality.
private void OnPublisherQualityUpdate(string streamId, ZegoPublishStreamQuality quality)
{
    // Implement the callback handling logic as needed.
}


// Assign the callback handling methods you implement to the delegates of the engine.
engine.onPublisherStateUpdate = OnPublisherStateUpdate;
engine.onPublisherQualityUpdate = OnPublisherQualityUpdate;
engine.StartPublishingStream("stream1");

Play streams

1. Start playing a stream

To start playing a remote audio or video stream, call the startPlayingStream method with the corresponding stream ID passed to the streamID parameter and the view for rendering the video passed to the canvas parameter.

You can listen for the onRoomStreamUpdate callback to obtain the stream IDs of the streams published by remote users.

There are four screen orientations for Android devices and iOS devices: Portrait, PortraitUpsideDown, LandscapeLeft, and LandscapeRight. To make sure the local preview and remote playback are always displayed in the right orientation, you need to add related code in your project, for more details, see [Qucik starts-Integration-4 Set screen orientation.

In Unity, you can render the remote video stream preview using RawImage or Plane Renderer.

• Method 1: Using RawImage

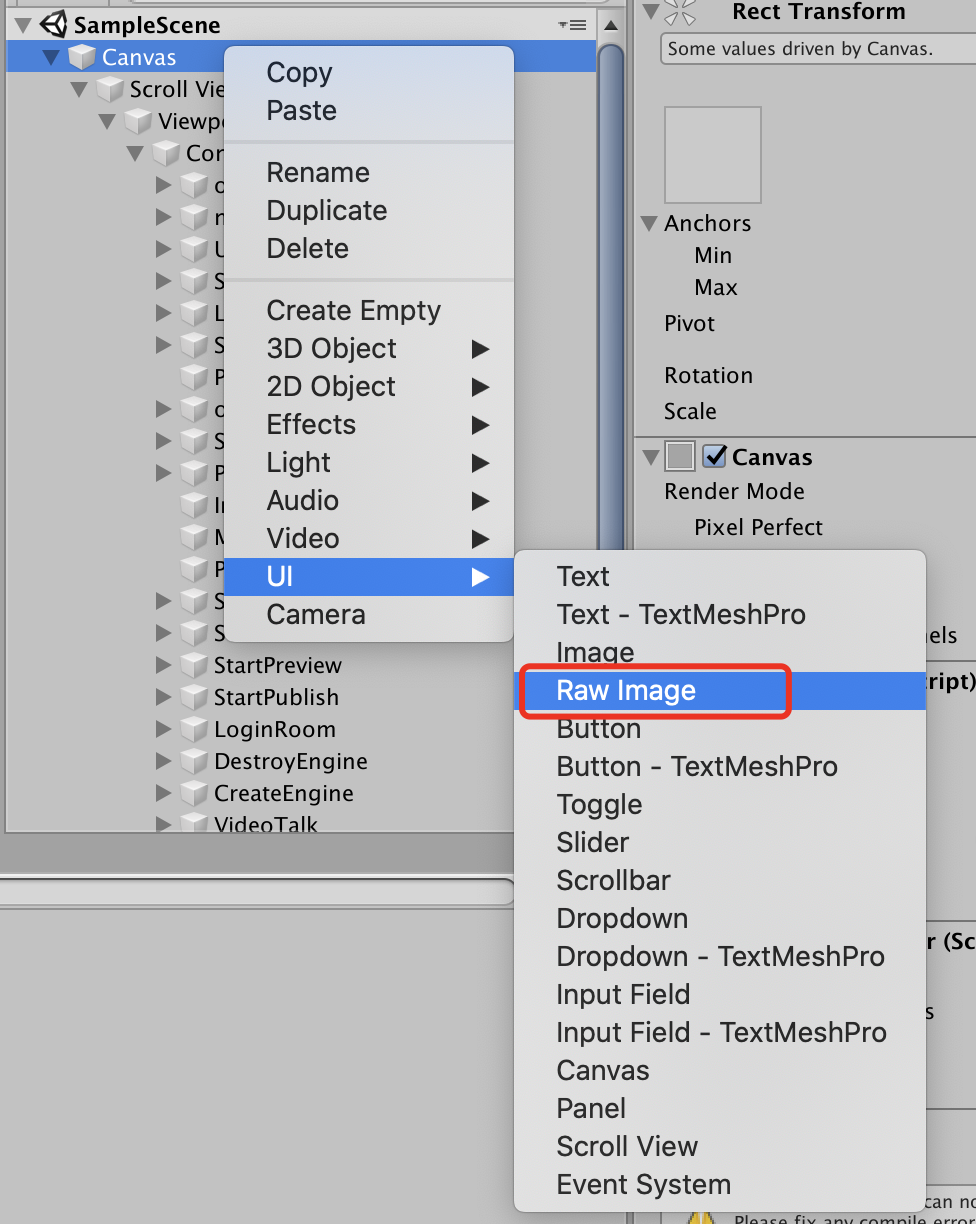

  • Select Canvas > UI > Raw Image to create a RawImage (with a Renderer).



  • Add the following code to render the remote video stream using the RawImage.

private const float Offset = 100;

GameObject go = new GameObject();

if (go == null)
{
    return;
}

go.name = "play-rawimage";
// Create a RawImage in runtime
go.AddComponent<RawImage>();
GameObject canvas = GameObject.Find("Canvas");
if (canvas != null)
{
    go.transform.parent = canvas.transform;
}
float xPos = UnityEngine.Random.Range(Offset - Screen.width / 2f, Screen.width / 2f - Offset);
float yPos = UnityEngine.Random.Range(Offset, Screen.height / 2f - Offset);
go.transform.localPosition = new Vector3(xPos, yPos, 0f);
go.transform.localScale = new Vector3(3f, 4f, 1f);

// Add a RawImageVideoSurface component, and the renderer is RawImage.
RawImageVideoSurface videoSurface = go.AddComponent<RawImageVideoSurface>();
// Set the Stream ID of the stream you want to render.
videoSurface.SetPlayVideoInfo("123");
// Set the engine as the video source.
videoSurface.SetVideoSource(engine);

// Start playing the stream.
engine.StartPlayingStream("123");

• Method 2: Using Plane Renderer

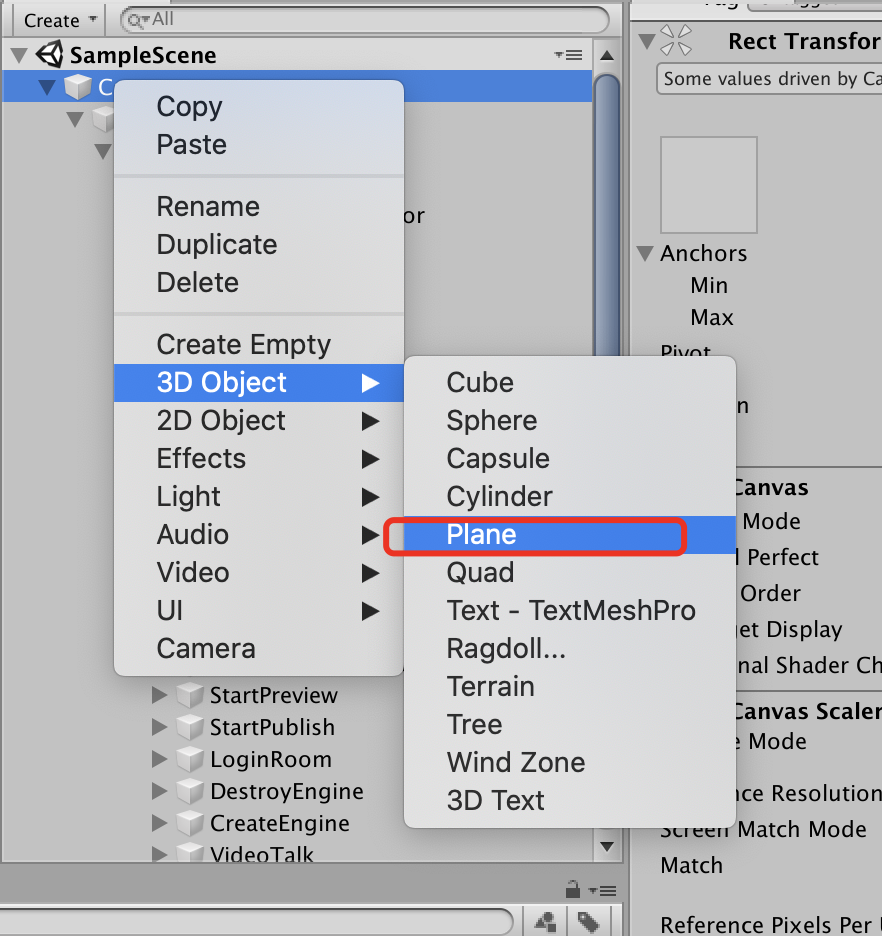

  • Select Canvas > 3D Object > Plane to create a Plane (with a Renderer).



  • Add the following code to render the remote stream using the Renderer of the Plane.

remoteVideoPlane = GameObject.Find("PlayRender");
if (remoteVideoPlane != null)
{
    if (remoteVideoSurface == null)
    {
        // Add a RendererVideoSurface component, and the renderer is the Plane's renderer.
        remoteVideoSurface = remoteVideoPlane.AddComponent<RendererVideoSurface>();
        // Ensure the video can be displayed on the screen.
        remoteVideoSurface.transform.Rotate(90.0f, -180.0f, 0.0f);
        remoteVideoSurface.transform.position = new Vector3(0.0f, 0.0f, 0.0f);
        remoteVideoSurface.transform.localScale = new Vector3(0.36f, 1f, 0.64f);
    }
    if (remoteVideoSurface != null)
    {
        // Set the Stream ID of the stream you want to render.
        remoteVideoSurface.SetPlayVideoInfo("123");
        // Set the engine as the video source.
        remoteVideoSurface.SetVideoSource(engine);
    }
}

// Start playing the stream.
engine.StartPlayingStream(“123”);

2. Listen for and handle the event callbacks related to stream playing

To listen for and handle various events that may happen after stream playing starts, you can implement the corresponding event callback methods of the event handler as needed. The following is a common event callback related to stream playing:

• onPlayerStateUpdate: Callback for updates on stream playing status. After stream playing starts, if the status changes (for example, when the stream playing is interrupted due to network issues and the SDK retries to start playing the stream again), the SDK sends out the event notification through this callback.

• onPlayerQualityUpdate: Callback for reporting stream playing quality. After stream playing starts, the SDK sends out the streaming quality data (frame rate, bit rate, RTT, packet loss rate, etc.) through this callback every 3 seconds.

• onPlayerMediaEvent: Callback for reporting streaming media events. After stream playing starts, when events occur (for example, the audio or video stutters or recovers from a stutter) the SDK sends out the event notification through this callback.

Event callbacks are delegates of the ZegoExpressEngine class. To listen for and handle a specific event callback, assign the callback handling method you implement to the corresponding callback delegate of the ZegoExpressEngine instance.

// Callback for updates on stream playing status.
public void OnPlayerStateUpdate(string streamId, ZegoPlayerState state, int errorCode, string extendedData)
{
    // Implement the callback handling logic as needed.
}

// Callback for reporting stream playing quality.
private void OnPlayerQualityUpdate(string streamId, ZegoPlayStreamQuality quality)
{
    // Implement the callback handling logic as needed.
}

// Callback for reporting streaming media events.
private void OnPlayerMediaEvent(string streamId, ZegoPlayerMediaEvent mediaEvent)
{
    // Implement the callback handling logic as needed.
}


// Assign the callback handling methods you implement to the delegates of the engine.
engine.onPlayerStateUpdate = OnPlayerStateUpdate;
engine.onPlayerMediaEvent = OnPlayerMediaEvent;
engine.onPlayerQualityUpdate = OnPlayerQualityUpdate;
engine.StartPlayingStream("123");

Test out the video call

We recommend you run your project on a real device. If your app runs successfully, you should hear the sound and see the video captured locally from your device.

To test out the real-time audio and video features, visit the ZEGO Express Web Demo, and enter the same AppID, Server and RoomID to join the same room. If it runs successfully, you should be able to view the video from both the local side and the remote side, and hear the sound from both sides as well.

Stop publishing and playing streams

1. Stop publishing a remote stream

To stop publishing a local audio or video stream to remote users, call the stopPublishingStream method.

// Stop publishing a stream
engine.StopPublishingStream();

2. Stop local video preview

If local video preview is started, call the stopPreview method to stop it as needed.

// Stop local video preview
engine.StopPreview();

3. Stop playing a stream

To stop playing a remote audio and video stream, call the stopPlayingStream method with the corresponding stream ID passed to the streamID parameter.

// stop playing a stream
engine.StopPlayingStream("123");

Log out of a room

To log out of a room, call the logoutRoom method with the corresponding room ID passed to the roomID parameter.

// log out of a room
engine.LogoutRoom("123666");

Destroy the ZegoExpressEngine instance

To destroy the ZegoExpressEngine instance and release the resources it occupies, call the destroyEngine method.

// Destroy the engine instance
ZegoExpressEngine.DestroyEngine();
