How can I obtain the SDK logs and stack traces?

Products / Plugins:Video Call / Voice Call / Live Streaming

Platform / Framework:iOS / Android / macOS / Windows / Web

Last updated:2022-03-25 15:51


Native

Native refers to the Android, iOS, macOS, and Windows platforms.

Set SDK log property

By default, the SDK generates the TXT log files with the prefix zegoavlog. And up to three files can be generated, the file names end with sequence numbers 1, 2, and 3.

By default, the maximum size of a log file is 5MB (5 x 1024 x 1024 Bytes). When the three log files are all in full condition, the SDK deletes the earliest log file.

The following are the default log storage path for different platforms:

  • Android: /storage/Android/data/[application package name]/files
  • iOS: ~/Library/Caches/ZegoLogs
  • macOS:
    • Sandbox: ~/Library/Containers/[application package name Bundle ID]/Data/Library/Caches/ZegoLogs
    • Non-sandbox: ~/Library/Caches/ZegoLogs
  • Windows: C:\User\Current username\AppData[application package name]ZEGO.SDK\ZegoLogs

To set the SDK log property (ZegoLogConfig), refer to the following:

  • Set the log storage path: logPath
  • Set the log file size: logSize
  • Customize the SDK log property: call the setLogConfig method

To ensure the integrity of the SDK logs, we recommend you call the setLogConfig method to set the SDK log property right after creating the ZegoExpressEngine.

Android

The following is the sample code that sets the log path to /data/user/0/package name/files, and max file size to 5MB:

ZegoLogConfig logConfig;
// Set the log storage path.
logConfig.logPath = getApplicationContext().getFilesDir().getAbsolutePath();
// Set the max file size for a log file.
logConfig.logSize = 5242880L;
engine.setLogConfig(logConfig);

API reference: ZegoLogConfig, setLogConfig

iOS/macOS

The following is the sample code that sets the log path to [[NSSearchPathForDirectoriesInDomains(NSCachesDirectory, NSUserDomainMask, YES) lastObject] stringByAppendingString:@"/ZegoLogs"], and max file size to 5MB:

// Set the log storage path.
NSString *appLogPath = [[NSSearchPathForDirectoriesInDomains(NSCachesDirectory, NSUserDomainMask, YES) lastObject] stringByAppendingString:@"/ZegoLogs"];
ZegoLogConfig *logConfig = [[ZegoLogConfig alloc] init];
logConfig.logPath = appLogPath;
//  Set the max file size for a log file.
logConfig.logSize = 5 * 1024 * 1024;
[ZegoExpressEngine setLogConfig:logConfig];

API reference:

Windows

The following is the sample code that sets the log path to /Users/zego/Log/log.txt, and max file size to 5MB:

ZegoLogConfig logConfig;
// Set the log storage path.
logConfig.logPath = "/Users/zego/Log/log.txt";
//  Set the max file size for a log file.
logConfig.logSize = 5242880L;
ZegoExpressSDK::setLogConfig(logConfig);

API reference: ZegoLogConfigsetLogConfig

Obtain the SDK logs

Follow these procedures to obtain the SDK logs for different platforms.

The following procedures use the default SDK path, you will need to use the correct path if you customized the directory path for SDK logs.

  • Android

    Go to /storage/Android/data/[application package name]/files, and the TXT files that start with the prefix zegoavlog are the log files.

  • iOS/iPadOS

    1. Connect your iOS device to your Mac.

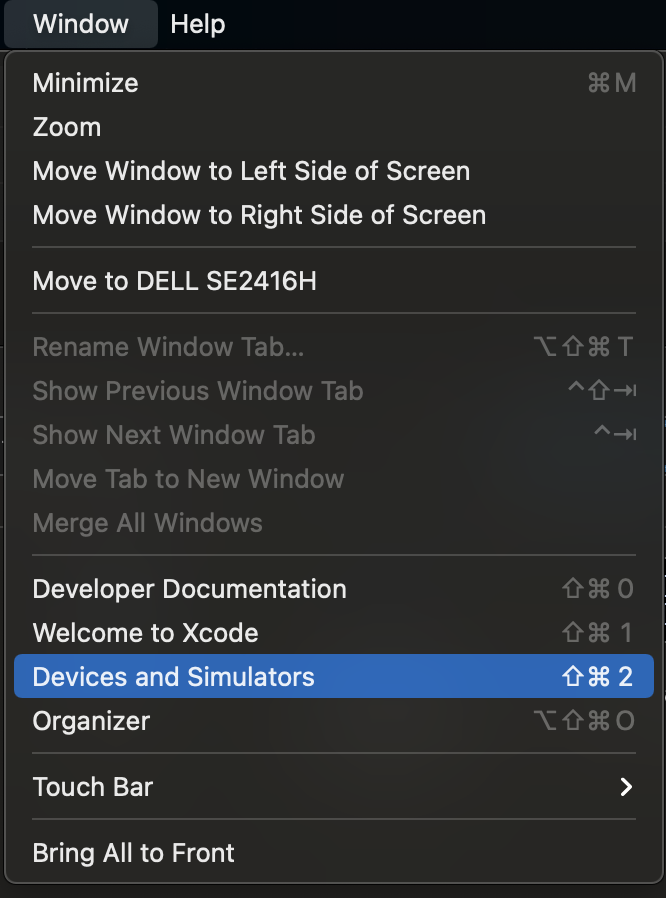

    2. Open Xcode, and then select Window > Devices and Simulators on the menu bar.

      xcode_device_window_menu

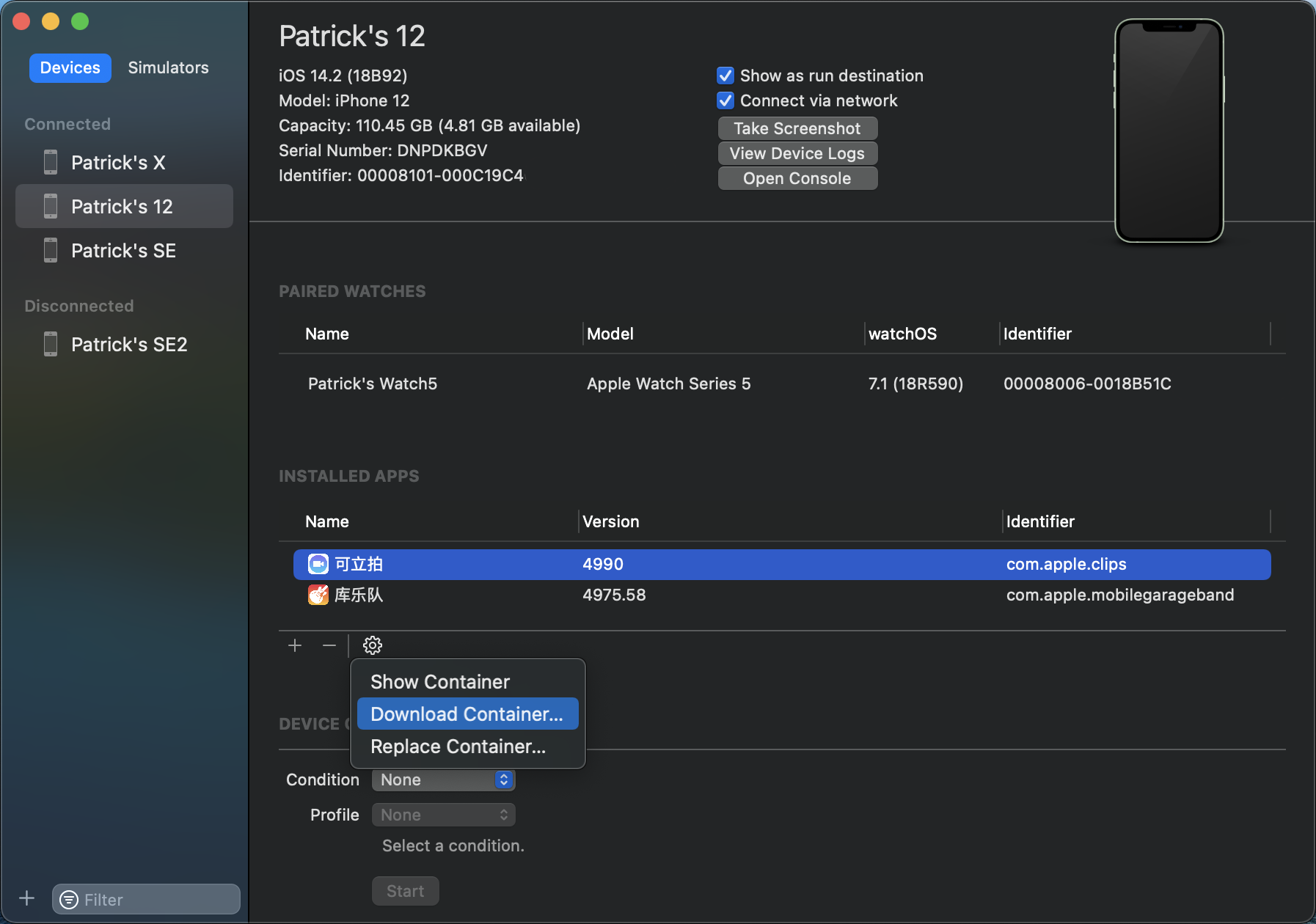

    3. Select your device on the left pane. Under INSTALLED APPS, select the app that you want to get the logs for. From the Action menu (the gear icon) below the table, choose Download Container. In the sheet that appears, enter a location and click Save. The saved file will have a .xcappdata filename extension.

    4. Open the Finder to find the .xcappdata file saved in the previous step. Right-click the file and select Show Package Contents, and then go to AppData > Library > Caches > ZegoLogs. The TXT files that start with the prefix zegoavlog are the log files.

  • macOS

    • Sandbox: Go to ~/Library/Containers/[application package name Bundle ID]/Data/Library/Caches/ZefLogs. The TXT files that start with the prefix zegoavlog are the log files.
- Non-sandbox: Go to **~/Library/Caches/ZefLogs**. The TXT files that start with the prefix `zegoavlog` are the log files.
  • Windows

    Open the File Explorer, type %APPDATA% into the address bar, and press Enter. It will take you directly to the folder where the log file folder is located. The name of the log file folder is Process name of the program + ZEGO.SDK, and the TXT files that start with the prefix zegoavlog are the log files.

Obtain the SDK stack traces

Follow these procedures to obtain the SDK stack traces for different platforms.

  • Android

    • Analyze logs in real time

      adb logcat | ndk-stack -sym $PROJECT_DYNAMIC_LIB_PATH

      Note:

      • $PROJECT_DYNAMIC_LIB_PATH is the path to the dynamic library directory (where the.so files are located) of the target ABI (armeabi, armeabi-v7a, or arm64-v8a).

      For example:

      adb logcat | ndk-stack -sym /path/to/your/project/armeabi-v7a

    • Analyze the log files after obtaining them

      Use adb logca to save the log files, and then analyze them by using ndk-stack.

      adb logcat> xx.log

      ndk-stack -sym $PROJECT_DYNAMIC_LIB_PATH -dump $LOG_FILE

      Note:

      • $PROJECT_DYNAMIC_LIB_PATH is the path to the dynamic library directory (where the.so files are located) of the target ABI (armeabi, armeabi-v7a, or arm64-v8a).

      • $LOG_FILE is the name of the output log file.

      For example:

      adb ​​logcat> crash.log

      ndk-stack -sym /path/to/your/project/armeabi-v7a -dump crash.log

  • iOS/iPadOS

    1. Connect your iOS device to the Mac.

    2. Open Xcode, and select Window > Devices and Simulators on the menu bar.

    3. Select your device on the left pane, click View Device Logs.

    4. Select the log entries that meet the following criteria:

      a. Process is your application name.

      b. Type is crash.

      c. Date/Time is in the time period when the crash happened.

    5. Right-click the log entry and select Export Log, and save the log details as a .crash file as prompted.

  • macOS

    Go to ~/Library/Logs/DiagnosticReports, and the stack traces are in the files that end with the suffix .crash.

Web

The log reporting feature is enabled on the Web by default.

We recommend you use the default log configurations, refer to the following to set the log level when needed.

Set the log level

You can call the setLogConfig method to set the ZegoLogConfig property to set related log properties, such as, the Web console log level logLevel, the reported log level remoteLogLevel and the reported log address logURL.

The logLevel and remoteLogLevel property can be set as follows:

Property Log level
logLevel
Level of Web console logs
  • debug
  • info
  • warn
  • error
  • report
  • disable
The severity of the preceding log levels increases from top to bottom. The higher the log level is, the fewer logs are generated.
remoteLogLevel
Level of reporting logs
  • debug
  • info
  • warn
  • error
  • disable
The severity of the preceding log levels increases from top to bottom. The higher the log level is, the fewer logs are generated.

You can set the logURL property to your report the logs to your own address based on the actual situations, pass a null string will report the logs to ZEGO.

The following is the sample code that sets the level of Web console logs and reported logs to debug, and sets the address of the reported logs to ZEGO:

const config = {
    logLevel: 'debug',
    remoteLogLevel: 'debug',
    logURL: ''
};
zg.setLogConfig(config);
